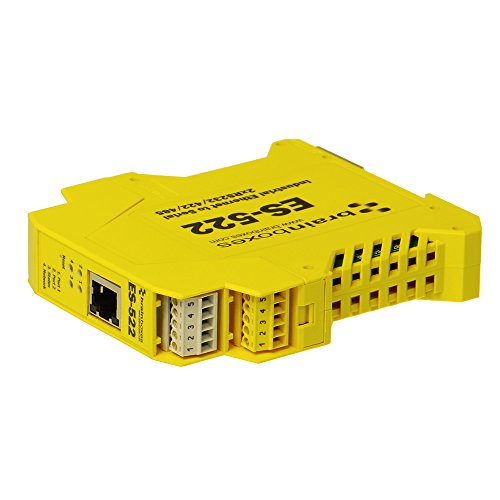

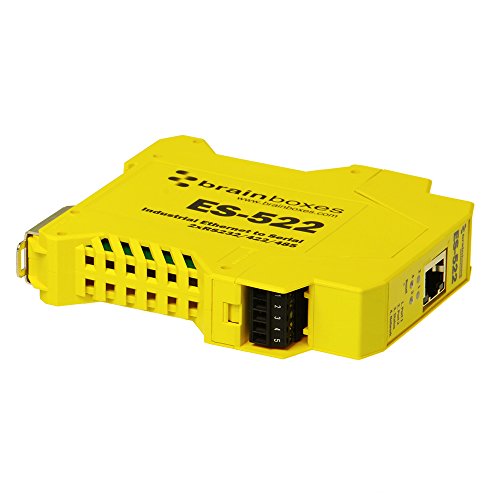

Brainboxes Device Server – 2 Ports – 10Mb LAN, 100Mb LAN, RS-232, RS-422, RS-485 (ES-522)

Ethernet to serial device with 2-port software selectable as RS232, RS422/485 full duplex or RS422 half duplex. ES-522 has removable screw terminals blocks for easy wiring, a slim ‘end on’ case and integral DIN rail mount. Industrial Ethernet to serial has an operating temperature range of -30 to +80 degrees Celsius and with +5 V DC to +30 V DC dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud, coupled with 1 Mbit/s line drivers deliver uncompromising performance. The Industrial ES range provides simple instant networked serial ports in demanding environments. Serial port tunneling allows serial cable replacement over any distance, no software required.

Make sure this fits by entering your model number.
Brainboxes state of the art auto gating for trouble free RS485 half duplex flow control
10/100 Base TX Ethernet port
User friendly interface, simple to use, powerful in operation
Web configuration and RFC2217 compliant interface for non-Windows users
IP-30 rated non-conducting polyamide enclosure
